Key Features of P43 Rail (43 kg/m Rail)

Design & Standard

P43 rail belongs to the 43 kg/m rail class.

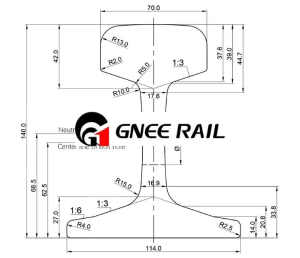

Typical technical parameters:

• Nominal mass class: 43 kg/m
• Theoretical mass: 44.653 kg/m
• Rail height: 140 mm
• Head width: 70 mm
• Base width: 114 mm
• Web thickness: 14.5 mm

The profile provides suitable bending strength and wear resistance for industrial and auxiliary railway applications.

Material & Mechanical Performance

Standard P43 rail is commonly manufactured from U71Mn rail steel.

The material provides:

• Wear resistance
• Strength stability
• Impact resistance
• Suitable fatigue performance

For higher wear conditions, head-hardened P43 rail can be supplied to improve surface hardness and service performance.

Applications

P43 rail is commonly used for:

• Mining railway systems
• Industrial plant railways
• Port and terminal tracks
• Factory transportation lines
• Auxiliary freight railway systems

It is not intended for continuous heavy-haul operation where higher rail sections are required.

Rail Joint and Fastening Compatibility

P43 rail requires matching:

• P43 fishplates
• Rail joint components
• Suitable fastening systems

Fastening selection depends on:

• Rail profile
• Sleeper design
• Track gauge
• Operating conditions

For industrial applications, P43 fastening systems are mainly applied to medium-load auxiliary track conditions.

P43 Rail vs P50 Rail

Item	P43 Rail	P50 Rail
Rail Class	43 kg/m class	50 kg/m class
Theoretical Mass	44.653 kg/m	51.514 kg/m
Rail Height	140 mm	152 mm
Head Width	70 mm	70 mm
Base Width	114 mm	132 mm
Web Thickness	14.5 mm	15.5 mm
Profile Strength	Medium	Higher
Typical Application	Industrial and auxiliary railway	Higher-load railway systems

P43 rail is a cost-effective heavy rail profile for medium-load industrial railway applications.

With correct track design, suitable fastening selection, and proper operating conditions, P43 rail can provide reliable performance in mining, industrial, and port railway systems.
