The screw spike is also known as rail screw. As one kind of Rail spike, it is a metal screw for fixing rail fasteners. Screw spike is usually made of NO.3 steel. Because its nail rod surface has thread, so it is called screw spike. The pull-out resistance is 0.5 ~ 1.0 times larger than that of common rail spike, but the thrust resistance is 50% less. Due to disassembly and assembly inconvenience, it is difficult to adjust the rail gauge, which is generally used on the railway turnout.

For meeting various needs of clients, we can offer coach screws, stud screw, railway sleeper screws and other coustom screw spike in railway.

Ss8 Sleeper Screw is a typical model of the Ss series railway screw spikes, with dimensions of 24×150mm and available in strength grades 4.6, 5.6, and 8.8, conforming to international standard UIC864-1. This screw spike is made from high-quality carbon or alloy steel and undergoes heat treatment and tempering to ensure high strength and fatigue resistance. The threaded portion is designed to create a stable grip in wooden or concrete sleepers, providing secure rail fastening. The square head design allows for quick installation on-site and can withstand repeated impact and vibration from train operations.

Ss series screw spike Specification

Ss series rail screw spike is designed according to the standard UIC864-1.

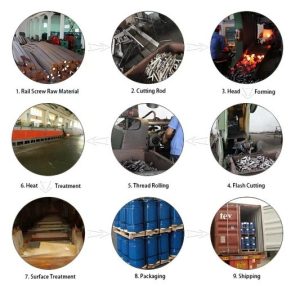

Production Process of the Railway Screw Spikes

• Raw Material
• Wiredrawing
• Rod Cutting
• Head Forming
• Edge Cutting
• Thread Rolling
• Heating Treatment
• Surface Finish
• Inspection
• Packing
• Shipment

For types of sleeper screws, Ss series are the top hot sales, with various sizes available. In addition, square head screw spike, hexagon screw spike, double head screw spike, dog screw, timber screw, and others.

The design and manufacturing of railway standard railroad screw spikes must comply with corresponding national and international standards. These standards have clear requirements for the material, mechanical properties, dimensional tolerances, anti-corrosion treatment, etc. of railway screw spikes.

Chinese standards: TB/T 1495 (railway standards and specifications), GB/T 1346, etc.

American standards: ASTM A66, AREMA (American Railroad Engineering and Maintenance Association standards).

European standards: EN 13481, UIC 864-2, etc.

Choosing railway screw spikes that meet the standards can not only ensure the safety and stability of the track but also extend the service life of the track system and reduce overall maintenance costs. GNEE RAIL provides a variety of railroad screw spike products that comply with international standards to meet the needs of different railway projects.
