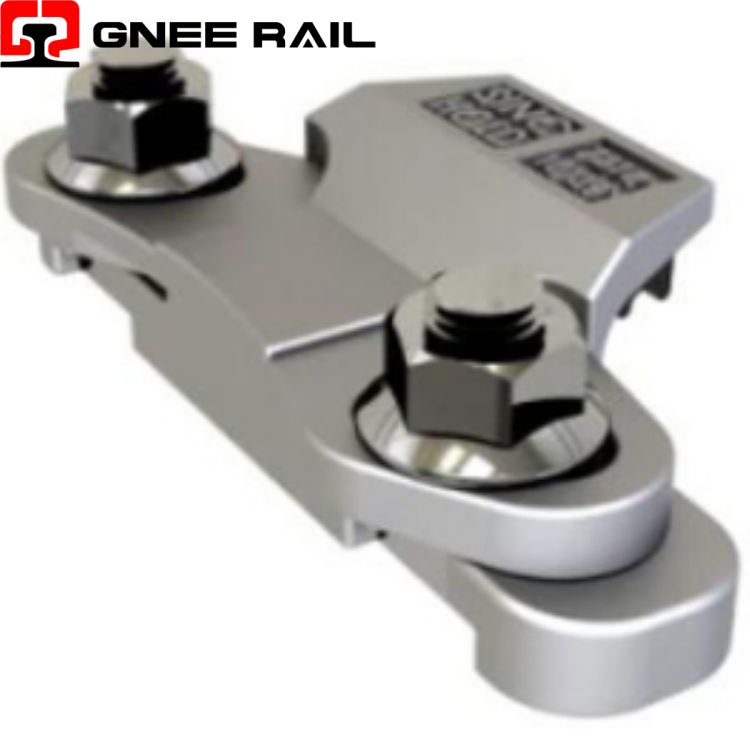

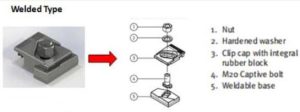

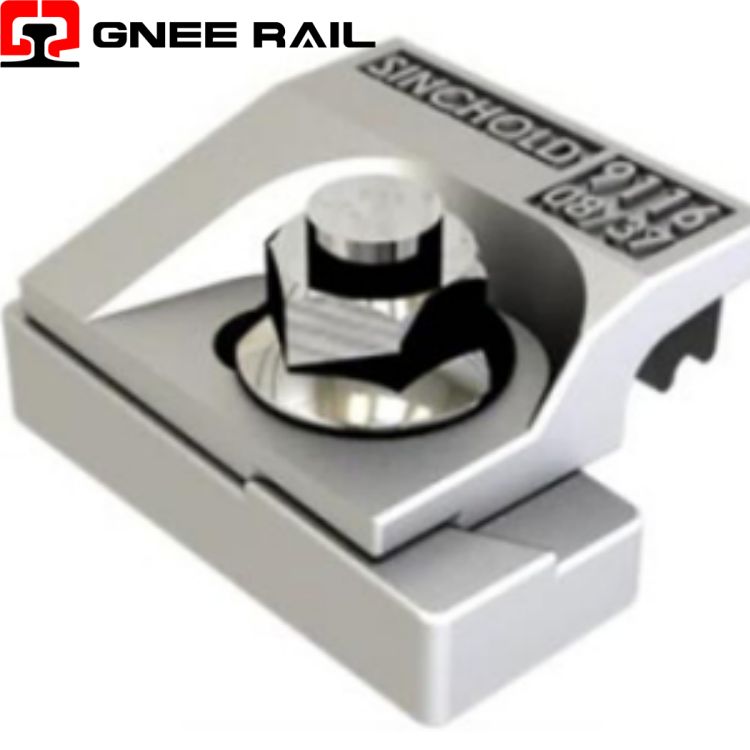

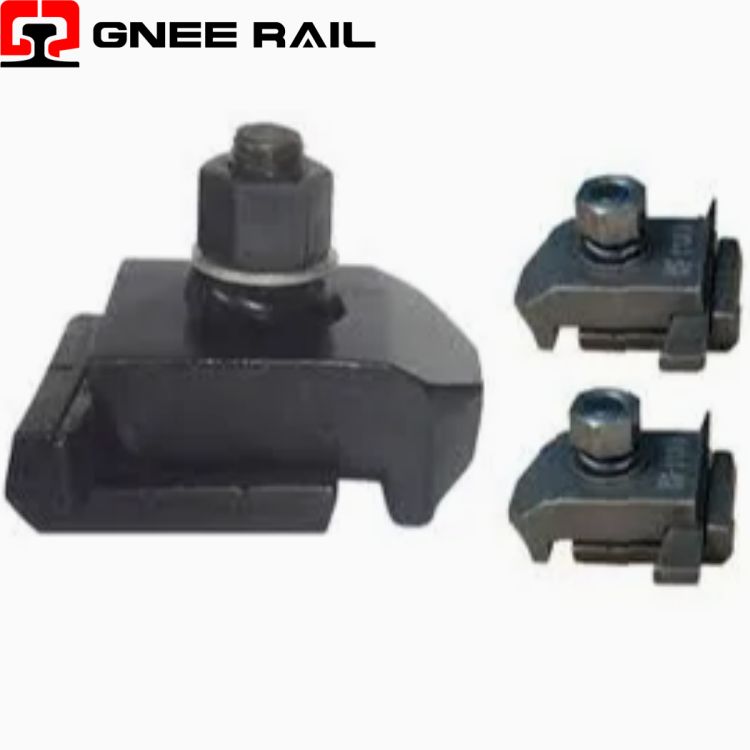

A crane rail clip is a metal component used to secure a crane rail to a supporting structure, such as a soleplate. These clips prevent the rail from shifting or moving during crane operation by holding it firmly in place while also supporting the load, resisting impact, and allowing for thermal expansion. They are available in both welded and bolted versions to suit different installation methods and are selected based on the specific rail profile, wheel loads, and environmental conditions.

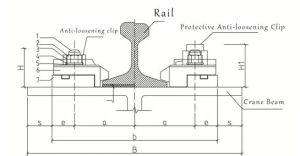

crane rail clip specifications

Comparison Reference

What is the function of a rail clip?

Properly transfer the lateral force from the rail into the steel plate and structure.

Secure the rail in the lateral direction to minimize pad creep.

Apply vertical force on the rail to compress the seals on the pad.
