Rail fastening system is a set of fasteners that used to connect steel rail and railway sleepers. Generally, the railway fastening system is required to have reliable connection, simple structure and features of elasticity, shock absorption and insulation.

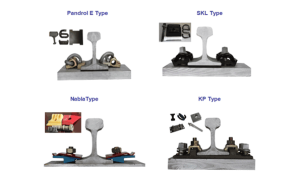

According to various rail fastening clip and clamp parts required, most popular rail fastening systems vastly used are: E Clip Rail Fastening System, N Clip Rail Fastening System, SKL Clip Rail Fastening System, KPO Clamp Rail Fastening System.

GNEE RAIL supplies rail fastening systems for standard railway lines, high-speed railway lines, heavy freight transport, underground systems,metro system, etc. Our rail fastening systems are widely applied for various railway structures: ballasted railway with concrete sleeper and wooden sleeper; none ballasted railway-paved concrete track.

Click here to obtain the detailed product catalog of GNEE RAIL.

SKL railway fastener system composition

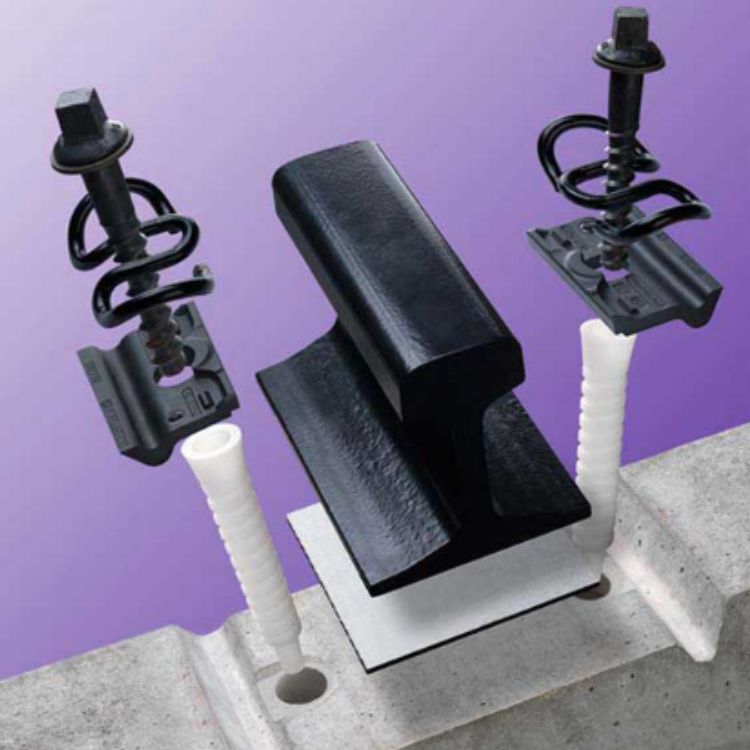

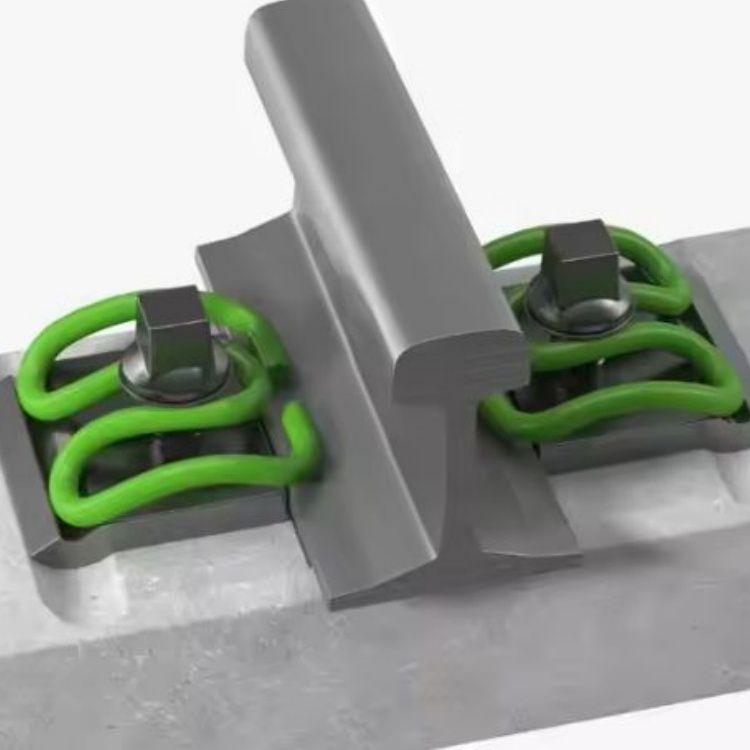

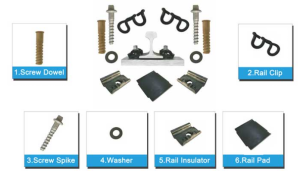

SKL rail fastening system is one kind of hot rail fastening system among the railway materials market.As for the components of SKL railway fastening system, including SKL rail clips, rail pad, screw spike, tie plate, washer, plastic dowel, track bolt and nuts, etc. common sizes of SKL rail fastening system include SKL 12, SKL 14 and SKL 3 rail fastening system.

SKL Rail Fastening System Application

SKL Rail Fastening System meet all the requirements of Tram line and general line and turnout area. Sleeper is not needed with top-down construction method. It is feasible in open track, also in embedded track. Easy installation, Gauge adjustment (+/-10mm), height regulation (+20mm), static stiffness (>30KN/mm), different stiffness of rail pads will be supplied according customer requirement.

About Us

Rail fastening system is not only supplied as a whole set,GNEE RAIL can supply fastening parts separately. We supply the baseplate, rail clip, rail spike(dog spike and screw spike), rail bolt, spring washer. You can customize your order with the help of rail fastener professional.
