How much does a UIC 60 rail weight per meter?

A standard UIC60 rail (also known as the 60E1 rail) weighs 60.34 kg per meter. This weight is strictly defined by the EN 13674-1 standard to ensure structural integrity across international railway networks. At GNEE RAIL, our rolling process maintains precise weight tolerances to guarantee the stability and safety of high-speed and heavy-load tracks.

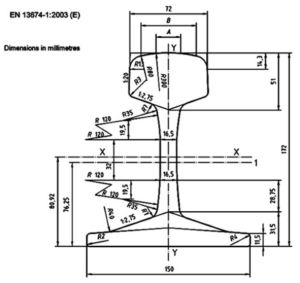

uic60 rail specification

The uic60 rail profile is designed for maximum durability. It features a height of 172 mm and a base width of 150 mm. The head width is 74.3 mm, providing a large contact area for train wheels. These specific dimensions work together with the 60.34 kg/m weight to distribute heavy axle loads efficiently. This design minimizes the risk of track deformation under extreme pressure.

Size	Dimension				Weight (kg/m)	Material	Length (m)
	Head (mm)	Height (mm)	Base	Web
UIC60	72	172	150	16.5	60.21	900A/1100	12-25

What are the main application scenarios for the 60e1 rail profile?

The 60E1 (UIC60) rail profile is a heavy-duty, European-standard (EN 13674-1) railway rail weighing 60.21kg/m, primarily used for high-speed, high-traffic, and heavy-haul rail networks. It is engineered for durability, supporting high axle loads, long-distance passenger travel, freight transportation, and continuous welded rail (CWR) installations to minimize noise.

Main Application Scenarios for 60E1 Rail:

High-Speed Passenger Networks: Due to its exceptional stability and load-bearing capacity, rail uic60 is the standard choice for high-speed lines, ensuring smooth, low-vibration, and safe travel.

Heavy-Haul Freight Lines: Extensively used in networks transporting bulk commodities like coal and ore, where its robust profile resists fatigue and deformation under extreme axle loads.

Mainline Railway Construction: Chosen for national and international mainline modernization and development across Europe and other regions that follow UIC standards.

Turnouts and Special Trackwork: Used in rail switches, turnouts, and intersections where high strength is required, often paired with R350HT steel for maximum wear resistance.

Urban Light Rail and Tramways: Employed in demanding urban transit networks that require high durability and vibration reduction.

Industrial and Crane Rails: Occasionally used in heavy-duty port railways and industrial siding due to uic60 rail’s high load capacity.

As a dedicated manufacturer, GNEE RAIL ensure that every meter of steel we produce aligns with the load-bearing calculations of your specific rail network.

Whether you are calculating logistics costs or designing a new heavy-haul line, our team can provide the exact technical specifications for the 60e1 rail. We move beyond simply delivering steel by offering material solutions that fit your project’s environmental and operational demands. If you need detailed weight charts or customized processing for your uic60 rail profile orders, please reach out to our technical department. We are ready to support your project with factory-direct expertise and reliable production timelines.
