ASCE 60 rail dimensions

The 60 lb rail is typically used for light cargo lines or light rail transit systems, and can also be applied to low-traffic railway lines. It is manufactured in accordance with the American ASCE standard ASTM A1 and is mainly used in North America. Also known as 60‑pound rail, it has a weight of 60 pounds per yard, equivalent to 29.8 kg/m.

GNEE RAIL supplies light rail profiles ranging from 12 lb/yd (6.0 kg/m) to 90 lb/yd (44.6 kg/m), with stock lengths of 6–12 meters. Custom lengths are also available upon customer request. In addition to 60 lb rail, we offer other American standard rails including 100 lb/yd, as well as heavy‑duty rails and crane rails such as 115 lb rail and 136 lb rail.

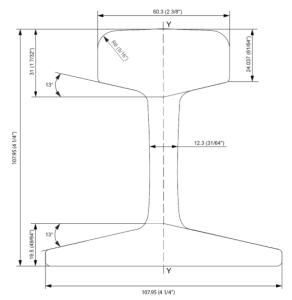

ASCE 60 Rail Dimensions Chart

The rail height and base width being equal (107.95 mm) is a defining characteristic of ASCE 60 rail. This 1:1 ratio enhances lateral stability and reduces the risk of overturning under dynamic loads.

The relatively wide head (60.33 mm) increases the contact area between wheel and rail, improving wear resistance and extending service life. Meanwhile, the web thickness (10.72 mm) provides sufficient strength to resist bending stresses without adding excessive weight.

Type of light rail	Standard	Dimensions mm				Section S	Mass m
		H	B	C	E	cm²	kg/m
ASCE standard
ASCE 60	ASCE	107,95	107,95	60,32	12,30	38,97	29,76

With a 60 lbs rail weight per meter of 29.8 kg/m, this profile achieves a strong balance between structural performance and ease of handling, making it ideal for medium-duty applications.

Technical Properties & Material Grades

Steel Grades Available：

At GNEE RAIL, we offer multiple material options for ASCE 60 rail, including:

AREMA standard grades
900A high-strength rail steel
Q235 / 55Q carbon steel
U71Mn high manganese steel

These options allow customers to select the appropriate material based on load conditions and service environment.



Q235B	Mechanical property						Chemical composition(%)
	Yield strength		Tensile strength		Elongation	Hardness	C	Si	Mn	S	P
	MPa	kg/mm²	MPa	kg/mm²	min	HB		≤		≤	≤
	≥	≥
	235	24	375-460	38-47	26%		0.12-0.22	0.35	0.30-0.70	0.045	0.045



55Q	Mechanical property						Chemical composition(%)
	Yield strength		Tensile strength		Elongation	Hardness	C	Si	Mn	S	P
	MPa	kg/mm²	MPa	kg/mm²	min	HBW				≤	≤
	≥	≥	≥	≥		≥
			685	69		197	0.50-0.60	0.15-0.35	0.60-0.90	0.04	0.04



Mechanical Property

Chemical Composition (%)

U71Mn

Yield strength

Tensile strength

Elongation

Hardness

C

Si

Mn

S

P

Cr

Ni

Cu

MPa

kg/mm²

MPa

kg/mm²

min

HBW

≥390

≥40

≥880

9%

0.65-0.76

0.15-0.35

1.10-1.40

≤0.030

≤0.030

≤0.250

≤0.250

≤0.250

These options allow customers to select the appropriate material based on load conditions and service environment.

Standard Lengths:

Typical supply lengths include:

9m, 10m, 12m
30 ft, 33 ft, 40 ft

Custom lengths are also available upon request.

GNEE RAIL offers:

High-quality rail ASCE 60 with strict dimensional control
Full range of railway fasteners and accessories
Custom processing and engineering support
Reliable global shipping and after-sales service

Send us your requirement (Name, Email, Quantity) today and get a fast, professional quotation.
