Heavy Rail vs Light Rail: Which One Do You Need?

Author : Nora | Last Updated : 2025-05-16

1. What Are Heavy and Light Steel Rails?

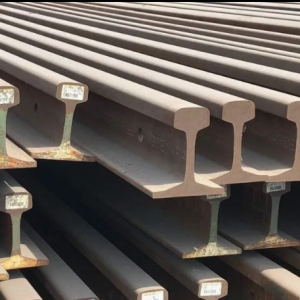

Heavy Rail

The Heavy Rail Steel

Definition: Rails with a mass typically greater than 30 kg/m.
Common types: P43, P50, P60 (China), UIC60 (Europe), 136RE (North America).
Usage: Mainline railways, high-speed rail, and heavy freight transport.

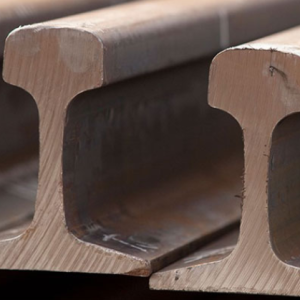

Light Rail

The Light Rail Steel

Definition: Rails with a mass less than 30 kg/m, generally lightweight and easier to handle.
Common types: 8kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg.
Usage: Mining railways, industrial yards, temporary tracks, forestry railroads.

2. Key Differences at a Glance

Feature	Heavy Rail	Light Rail
Load Capacity	High — suitable for high-speed and heavy loads	Low — suitable for light loads and slow speeds
Mechanical Strength	High tensile strength, wear resistance	Moderate strength, lower fatigue resistance
Structure	Thicker, heavier, more stable	Slimmer profile, easier installation
Service Life	Longer with less maintenance	Shorter lifespan, more frequent replacements
Manufacturing Standards	High precision, often heat-treated	Simpler requirements

3. Typical Applications

Heavy Rail Applications

High-speed railways (e.g., bullet trains like CRH, Fuxing)
Mainline freight and passenger lines
Heavy-haul railways (coal, ore, industrial corridors)
Urban subway and metro systems
Continuous welded rail systems

✅ Why use heavy rail?

Required for trains operating at high speed or carrying heavy loads

Lower long-term maintenance costs

More stable and durable in harsh or high-traffic environments

Light Rail Applications

Mines and underground tunnels
Temporary construction tracks
Industrial zones and factories
Forestry and agricultural railroads

✅ Why use light rail?

Easier to transport and install

Cost-effective for light-duty operations

Suitable

4. How to Choose Between Heavy and Light Rails?

Choosing the right type of rail involves balancing performance, cost, and operating conditions. Here’s a quick guide:

Evaluation Factor	Recommendation
Train Speed & Load	Heavy rail for high-speed or high-axle-load operations
Traffic Frequency	Frequent use → heavy rail; occasional use → light rail
Installation Environment	Tight or temporary → light rail
Maintenance Capabilities	Remote or low-maintenance areas → heavy rail
Budget Constraints	Cost-sensitive projects → light rail

5. Market Trends and Future Outlook

Ultra-long rails (100–500m) are becoming the standard to reduce joints and improve stability.
Digital rail monitoring and smart infrastructure technologies are being integrated into modern track systems.
Eco-friendly manufacturing, rail recycling, and sustainable alloys are also gaining traction.

While heavy rails dominate in modern, high-speed, and heavy-load environments, light rails continue to play a critical role in industrial and niche applications where agility and cost-effectiveness are paramount.

Conclusion

Heavy rails form the backbone of national and high-speed railway networks.

Light rails offer flexible, efficient solutions for industrial and temporary track systems.
