Rail Joint for Railway Fastening
Rail Joint for Railway Fastening
Rail Joint for Railway Fastening
Rail Joint for Railway Fastening
Rail Joint for Railway Fastening
Rail Joint for Railway Fastening
Rail Joint for Railway Fastening
Inquiry Now

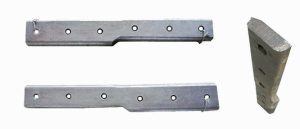

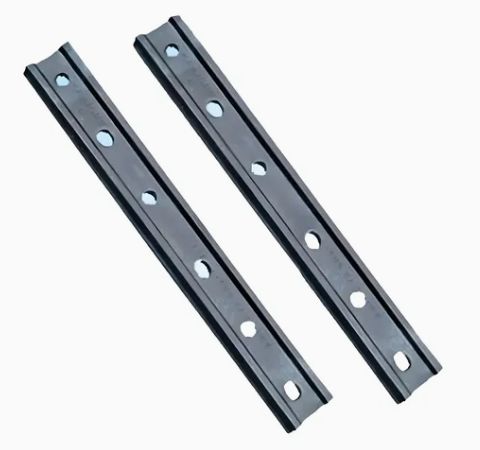

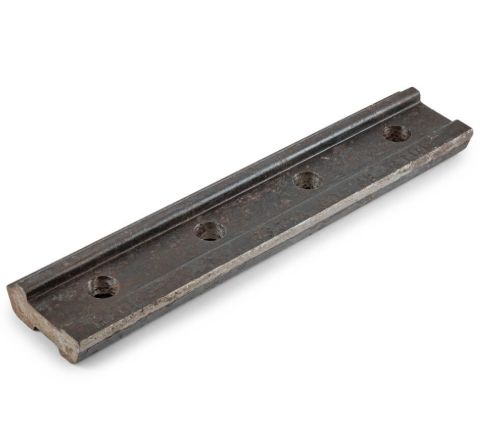

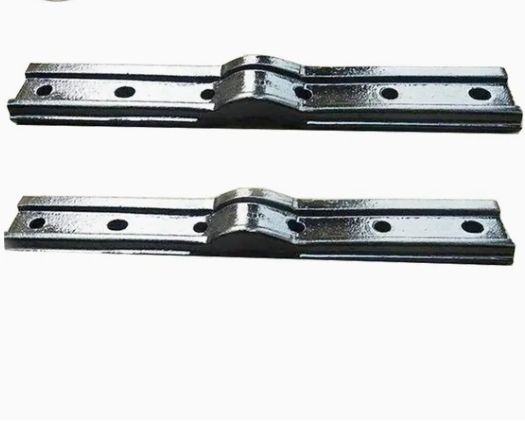

Rail Joints, also called railway fish plate or joint bar, splice bar, is a metal joints bar connected to the ends of two rails to bond them together. A quality rail joint bar can largely reduce the impact of wheels to the jointing sections of the rail tracks and increase the continuity and steadiness of the train when passing through the jointing sections. This rail components is a guarantee to railroad transportation safety no matter it’s light or heavy.

According to different installation methods, there are bolted rail joints, welded rail joints, and glued joints; according to different production standards, there are GB standard rail joints, BS standard rail joints, American standard rail joints.

Railway fishplate specifications

UIC standard railway fish plate

Standard Material Size(kg) Tensile strength Rm Yield strength Elongation A Reduction of Area Z Brinell Hardness Cold Bend d=3a
UIC864-4& UIC864-8 Chinese steel grade 40# U79–UIC54, U85–UIC60 550-650Mpa N/A ≥18% N/A N/A N/A

DIN standard railway fish plate

Standard Material Size(kg) Tensile strength Rm Yield strength Elongation A Reduction of Area Z Brinell Hardness Cold Bend d=3a
DIN5902-1995 Chinese steel grade Q235/Chinese steel grade Q295 S30 for FL30 rail, S33 for FL33 rail, S41 for FL41 rail, S49 for FL49 rail, FL10, FL14, FL18, FL20, FL41-54 ≥ 375 Mpa ≥ 235 Mpa ≥ 21% N/A N/A N/A

Chinese standard railway fish plate

Standard Material Size(kg) Tensile strength Rm Yield strength Elongation A Reduction of Area Z Brinell Hardness Cold Bend d=3a
TB/T2345-2008 Chinese steel grade 55# 43, 52, 60, 75 ≥ 785Mpa ≥ 520Mpa ≥ 9% ≥ 20% HBW 227-388 30 degree, no crack

BS standard railway fish plate

Standard Material Size(kg) Tensile strength Rm Yield strength Elongation A Reduction of Area Z Brinell Hardness Cold Bend d=3a
BS47-1 Chinese steel grade 40# BS75R, BS80A, BS90A, BS100A, BS113A 550-650Mpa N/A ≥ 18% N/A N/A N/A

South American standard railway fish plate

Standard Material Size(kg) Tensile strength Rm Yield strength Elongation A Reduction of Area Z Brinell Hardness Cold Bend d=3a
According to Customer’s requirements Chinese steel grade 50# or customized TJ57, TJ ASCE90, TJ UIC60(Brazilian) 75LBS A.S.C.E, 75LBS BSS, 80LBS A.S.C.E, TJ BS80A(Peruvian) N/A N/A N/A N/A N/A N/A

Installation of railway fish plates

Railway fish plate installation procedures can be summarized to four steps as follow.

  1. Before installing railway fish plate, cutting power off and
  2. Each connection joint install two rail bolts.
  3. Install spring washer and flat washer before install fish bolt, openings of washer is downward.
  4. Railway fish plate, railway track and fish bolts should be oiled.
