Elastic rail clip is one of the common railway fasteners in the railway system. In general, elastic rail clip is made of forged spring steel and has many applications. No matter as a part of rail fastening system or as a rail fastener, elastic rail clip is used with other railway track parts, such as railroad spike, rail pad, tie plate and plastic dowel.

Fast Rail Clip for Rail Fastening

Fastclip is a non-elastic rail clip. GNEE RAIL’s fast clip is made of high-quality spring steel, such as 60Si2Mn, etc., so it has high elastic limit, yield strength and fatigue strength, and is not prone to plastic deformation during long-term use. And it is widely used in some advanced railway lines in Europe, the United States, Japan, South Korea and other countries and regions.

Fast Railway Clip Specifications

Materials: 60Si2Cr, 55SiMn, 38Si7
Product properties: Hardness HRC 42-47,Fatigue life 3-5 million cycles
Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacro coating
Suitable for use on: Light Rail, metro, general main line, high speed and heavy haul freight tracks. Suitable for use on monobloc sleepers (pre- or post-tensioned) or reinforced bi-block sleepers.
Standard: AREMA, DIN, EN13481-2:2002, GOST, IRS, JIS, etc

FC 1500 FC 1600
Nominal Buckle Pressure 1000 kgf 1250 kgf
Buckle Pressure > 16 kN > 20 kN
Rail Resistance to Climbing >7kN > 9 kN
Insulation Resistance >5 kO >5 kO

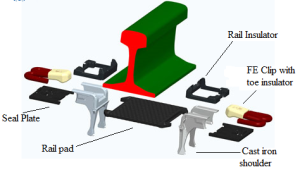

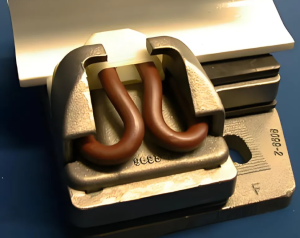

Fast Railway Fastening System

Other rail clip types offered by GNEE RAIL

E-type Clips
Model Diameter Material Hardness
E1809 ø20 60Si2MnA 44-48
E1813 ø18 60Si2MnA 44-48
E2001 ø20 60Si2MnA 44-48
E2039 ø20 60Si2MnA 60Si2MnA
E2055 ø20 60Si2MnA 60Si2MnA

SKL Tension clips
Model Diameter Material Hardness
SKL1 ø13 60Si3CrA 42-47
SKL3 ø13 60Si3CrA 42-47
SKL12 ø13 38Si7 42-47
SKL14 ø14 60Si2MnA 42-47



Other Rail Clips
Model Russia rail clip Deenik clip Anti-vandal clip Fast clip GL1419 GL1419
Diameter ø18 ø25 ø18 ø15 ø14
