Description

Rail elastic clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. Usually rail clips are made of forged spring steel which is produced by hot forging process. Because of the uniform microstructure of forged clips, it is considered to be better than other metal forming process.

Production Processes of Elastic Rail Clips:

1. Raw material purchasing
2. Shearing
3. Heating to forging temperature
4. Forming
5. Hardening
6. Tempering
7. Surface treatment
8. Inspection-Packing

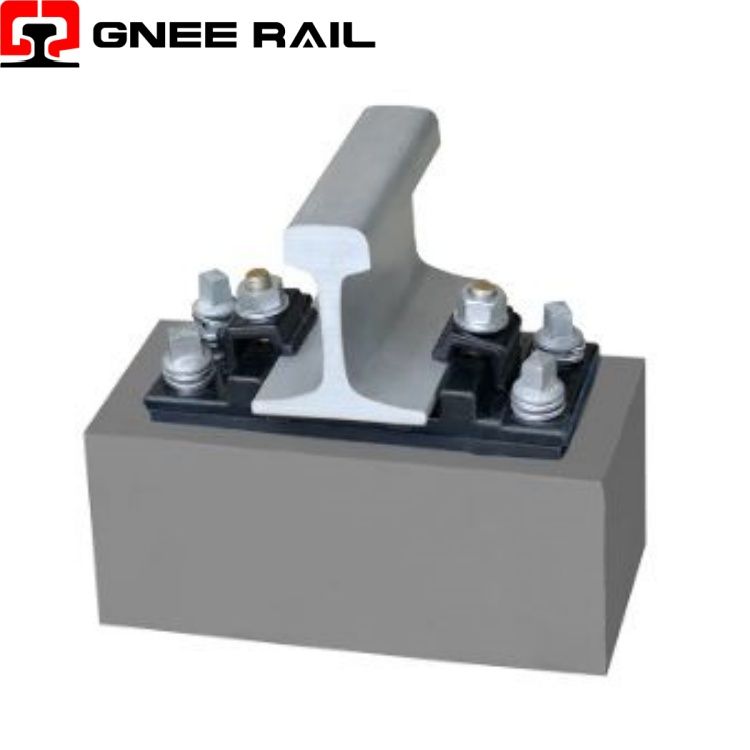

The Type III Elastic clip fastening system with Type III rail clip is a fastener system for a shoulderless track rail, and the fastener system is composed of Type III spring clips, insulating gauge block, rail rubber pad, rail shoulders.The fastener has the advantages of fewer parts, compact structure, large buckle pressure, strong gauge capacity, low maintenance workload, and is particularly suitable for a line using a large-scale mechanical operation.

Type-III Rail Fastening System Coponents List
